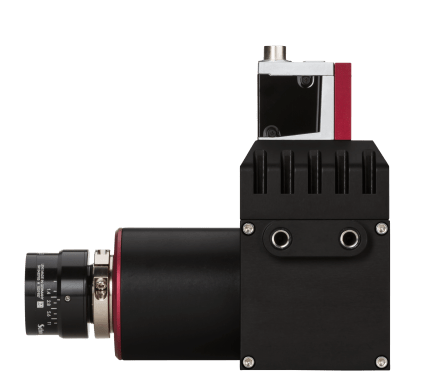

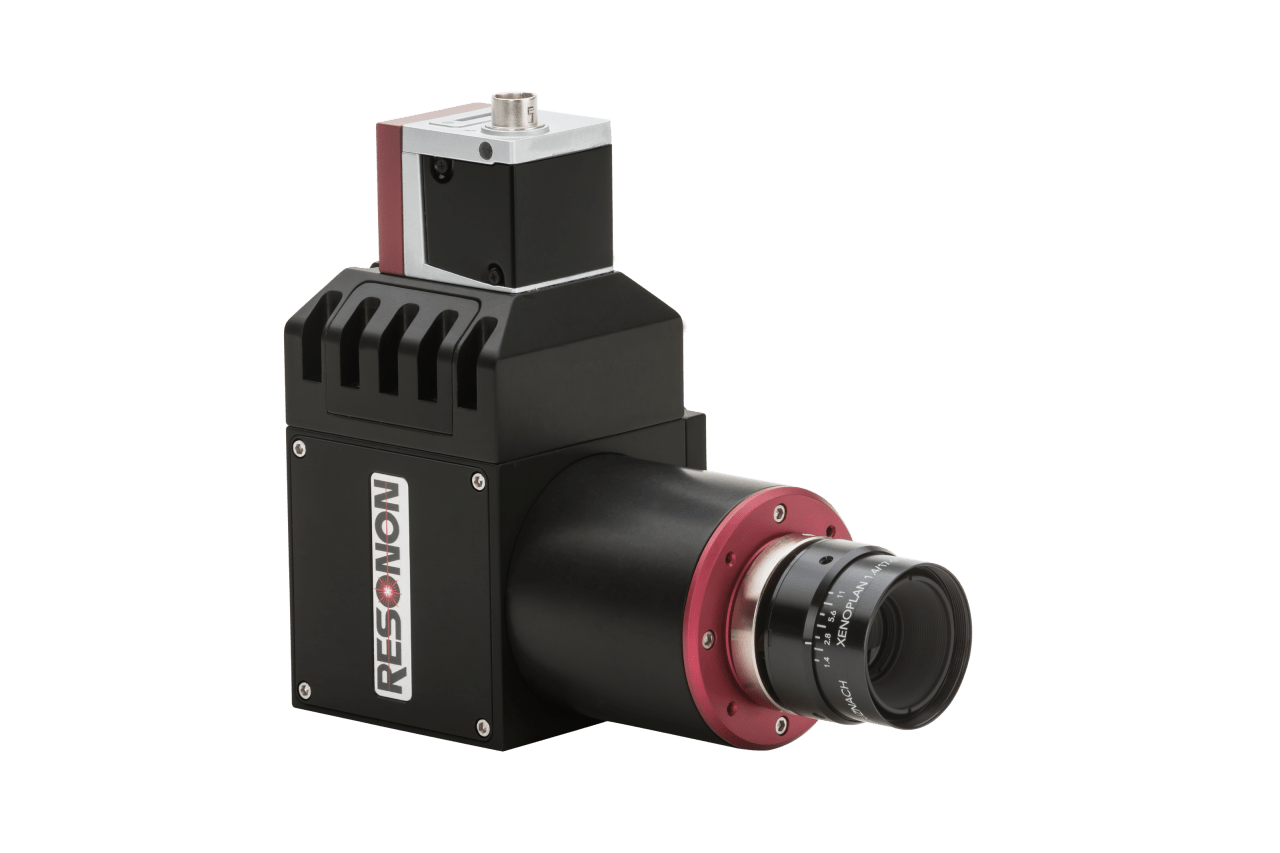

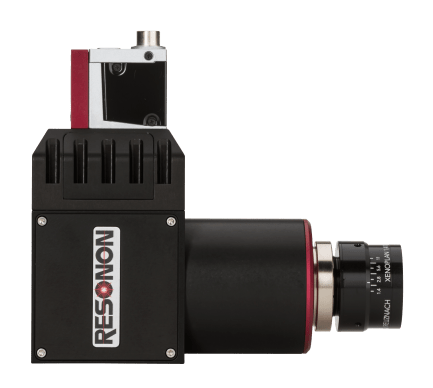

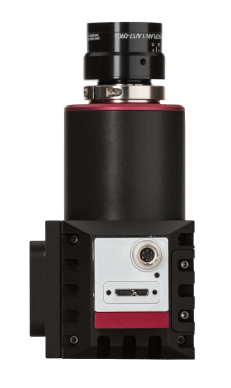

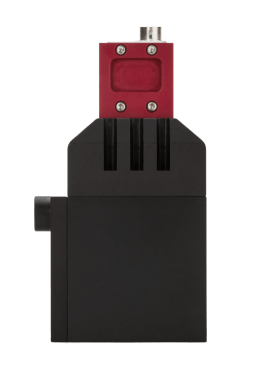

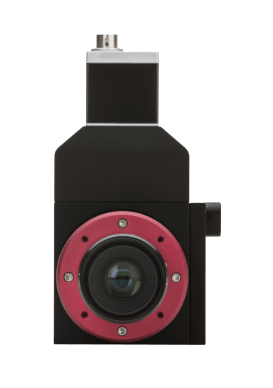

Pika L - VNIR Hyperspectral Imaging Camera

The Pika L is lightweight, compact, and ideal for airborne remote sensing applications.

Click here to contact us for product and pricing information.


Pika L airborne hyperspectral imaging system
Complete Pika L Airborne
Hyperspectral Imaging System,
ready for installation.

The Pika L is lightweight and compact, ideal for remote sensing applications.

The Pika L airborne system acquires georegistered hyperspectral data with minimum payloads of 3.3 lbs (1.5 kg).


Specifications

Spectral Range 400 - 1000 nm
Spectral Resolution 2.1 nm
Spectral Channels 281
Dispersion per Pixel = Spectral Sampling 1.07 nm
Spectral Pixels 561
Spatial Channels 900
Max Frame Rate 249 fps
Signal-to-Noise Ratio (peak) 368 (2x bin) to 520 (4x bin)
Bit Depth 12
Connection Options USB 3.0
Power Requirements 3.4W
Weight 1.3 lbs, 0.6 kg
Dimensions (in) 3.9 x 4.9 x 2.2
Dimensions (cm) 10.0 x 12.5 x 5.3
Operating Temperature 41-104 F, 5-40 C
f / # f / 2.4
Avg. RMS Spot Radius 6 µm
Smile (peak to peak) 4 µm
Keystone (peak to peak) 5 µm
Pixel size 5.86 µm

Standard objective lens options - Pika L

click here for more information on objective lenses
Focal Length (mm) FOV (deg) IFOV (mrad)
70 4.3 0.21
50 6.0 0.30
23 13.1 0.65
17 17.6 0.88
12 24.8 1.25
8 36.5 1.87
6 47.4 2.50

Other objective lenses are available. Please contact us to discuss your requirements.


Pika L Data Sheet pdf icon

Resonon's hyperspectral imaging cameras can be operated using SpectrononPro software, which controls the cameras and scanning stage and has many tools to analyze hyperspectral data. SpectrononPro also has capability to accept user-written plugins, allowing the user to integrate custom data-analysis algorithms into SpectrononPro.

A free version of SpectrononPro, along with sample datacubes, are available for free download at: downloads.resonon.com.

A C++ Software Development Kit is available for customers who want to integrate Resonon hyperspectral cameras into their own software system. Available in Windows and Linux.
