Benchtop System - Reflectance
Benchtop System - Reflectance

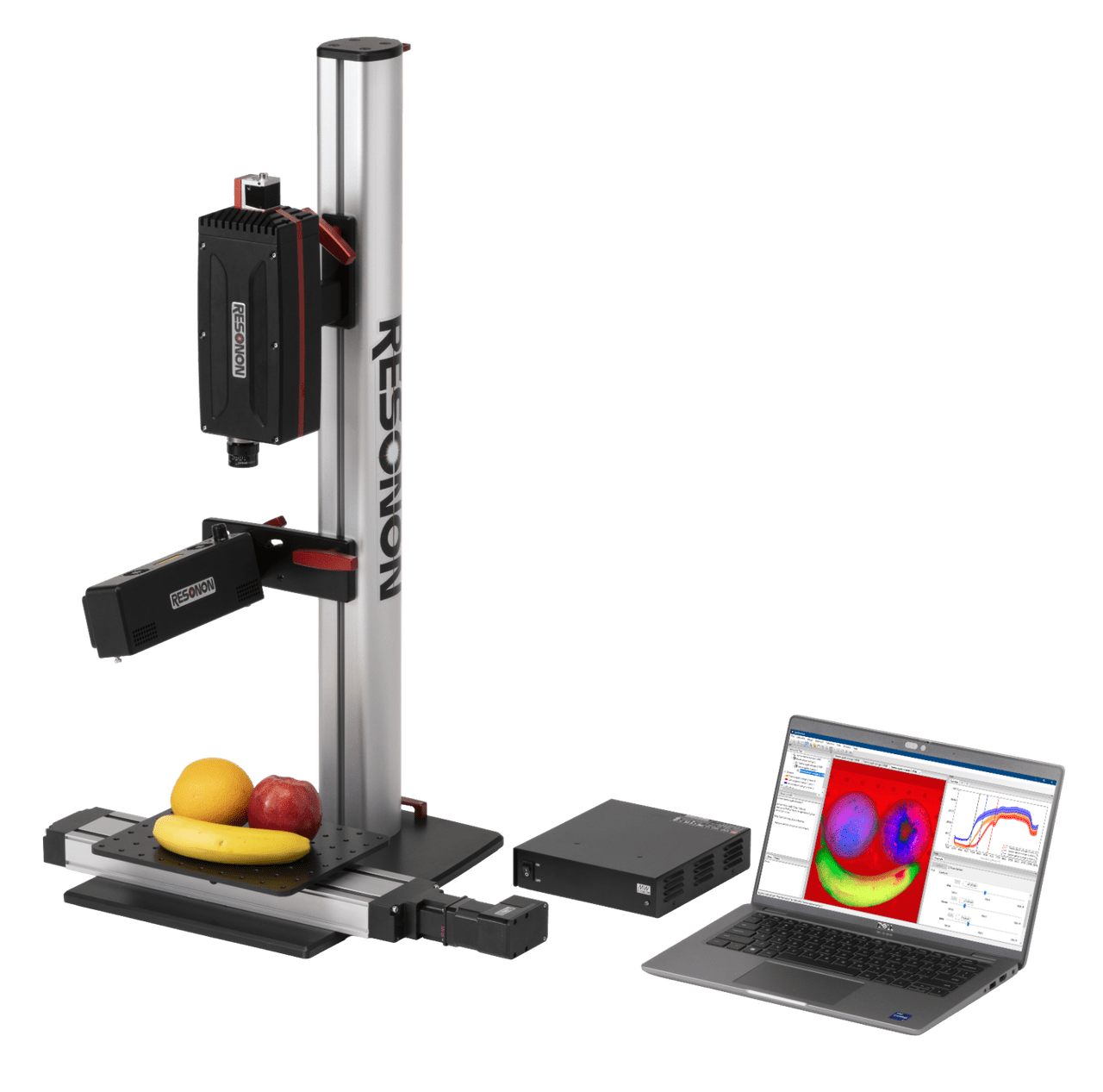

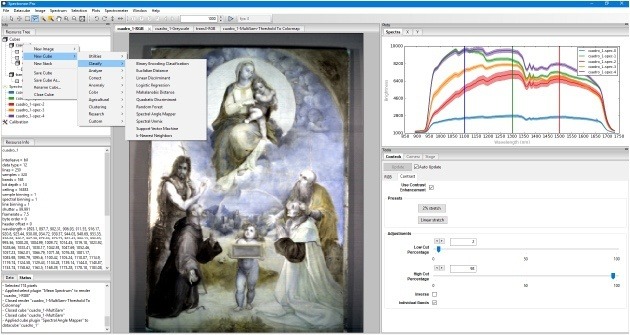

The Benchtop System - Reflectance Configuration is used to acquire reflectance data in a laboratory environment. A Resonon pushbroom hyperspectral camera is mounted on a tower, the sample is placed on a linear translation stage below the camera and illuminated from above. During data acquisition the stage moves, translating the sample beneath the imager. The imager and stage are controlled using Spectronon software.

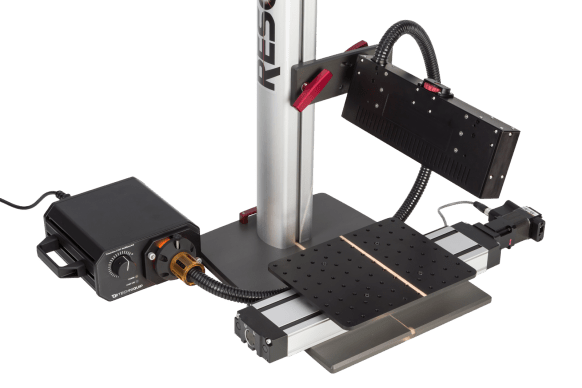

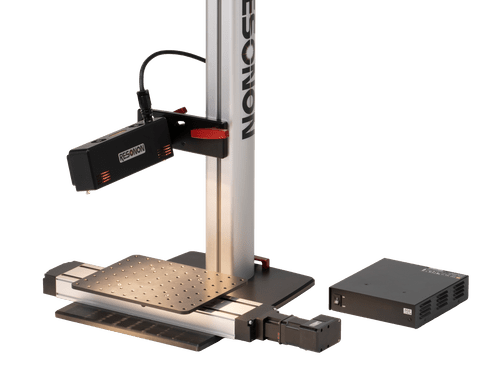

A high-intensity halogen line light provides stabilized broad-band illumination across the entire measured spectra. Both the imager and lighting are adjustable along the length of the tower.
Resonon's systems contain all hardware and software necessary to acquire and analyze hyperspectral data.
Benchtop systems can be fitted with any of Resonon's hyperspectral imaging cameras covering the 350 - 1700 nm spectral range.
System components:
- Hyperspectral imaging camera
- Objective lens
- Linear translation stage
- Mounting tower
- Halogen line light with stabilized power supply
- Spectronon software pre-loaded onto a laptop computer
- Calibration tile

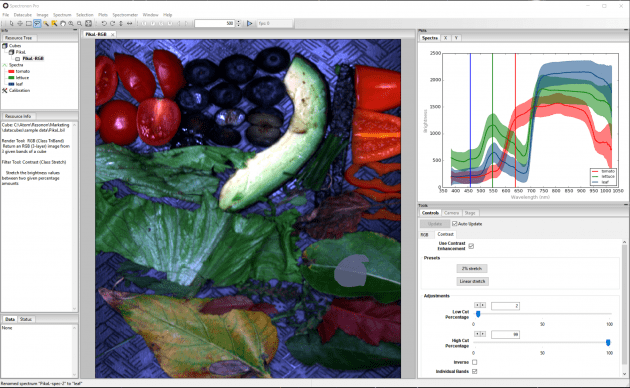

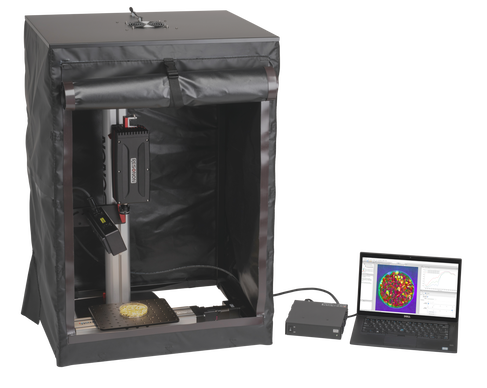

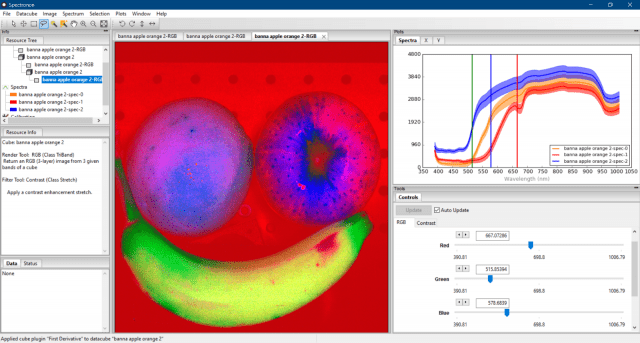

Photos of Benchtop System - Reflectance




Specifications
Power requirementsCompatible with 110V / 220V outlets.
Stage Length (cm/in)30 / 12
Tower Height (cm/in)89 / 35
System weight, no imager (kg/lb)19.5 / 43.0
