The Benchtop System - Combined Reflectance/Transmission Configuration is used to acquire both reflectance and transmission data in a laboratory environment. The sample sits on a clear stage and can be illuminated from either above or below. During data acquisition the stage moves, translating the sample beneath the imager. The imager and stage are controlled using Spectronon software.
This system uses one high-intensity, stabilized, line light illumination source. The line light is easily-transferred between the reflectance and transmission configurations and provides stabilized broad-band illumination across the entire measured spectra. The imager is adjustable along the length of the tower.
Resonon's systems contain all hardware and software necessary to acquire and analyze hyperspectral data.
The Reflection/Transmission benchtop system can be fitted with any of Resonon's hyperspectral imaging cameras except for the Pika UV. The additional lighting required for the UV spectrum is not compatible with the Transmission configuration.
A Transmission Add-On Kit is available to convert an existing Reflectance System into a Reflectance/Transmission System. See a photo of the components, below.
Standard System Components:
- Hyperspectral imaging camera
- Objective lens
- Linear translation stage
- Mounting tower
- High-Intensity, Stabilized Line Light Assembly
- Backlight Housing
- Spectronon software pre-loaded on a laptop
- Calibration tile

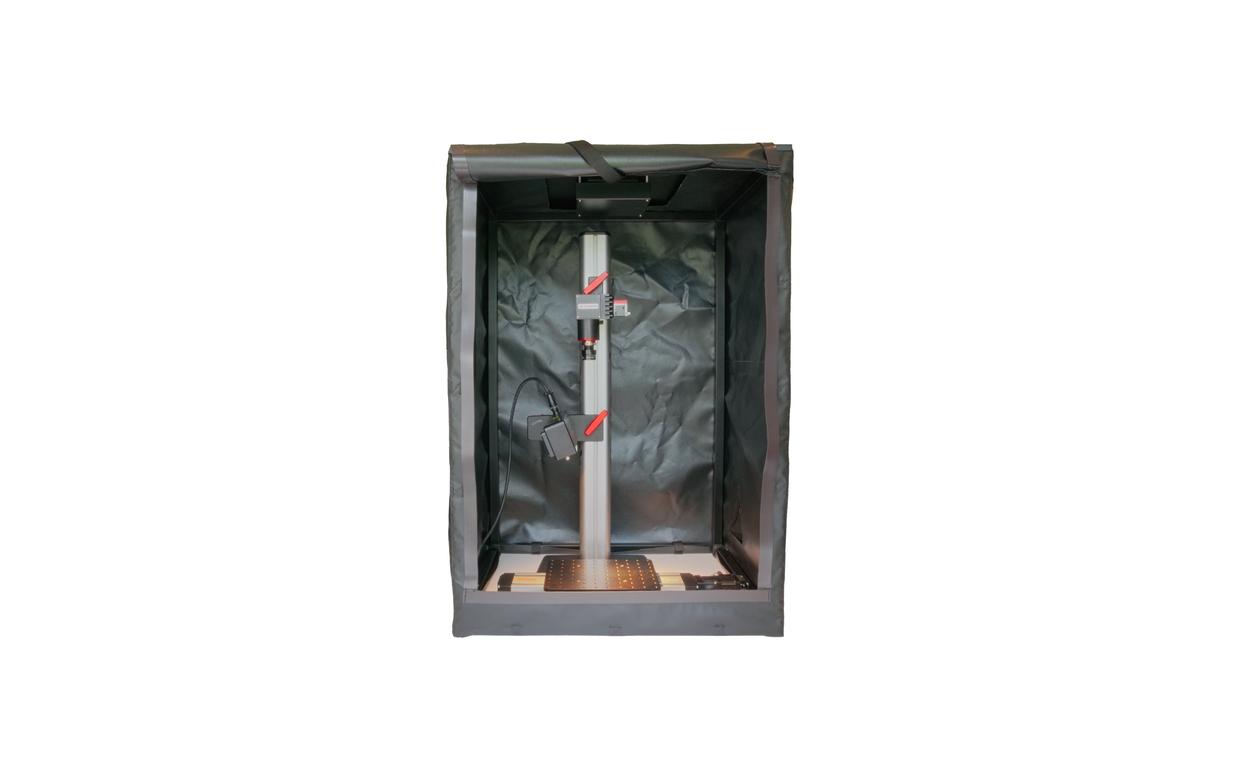

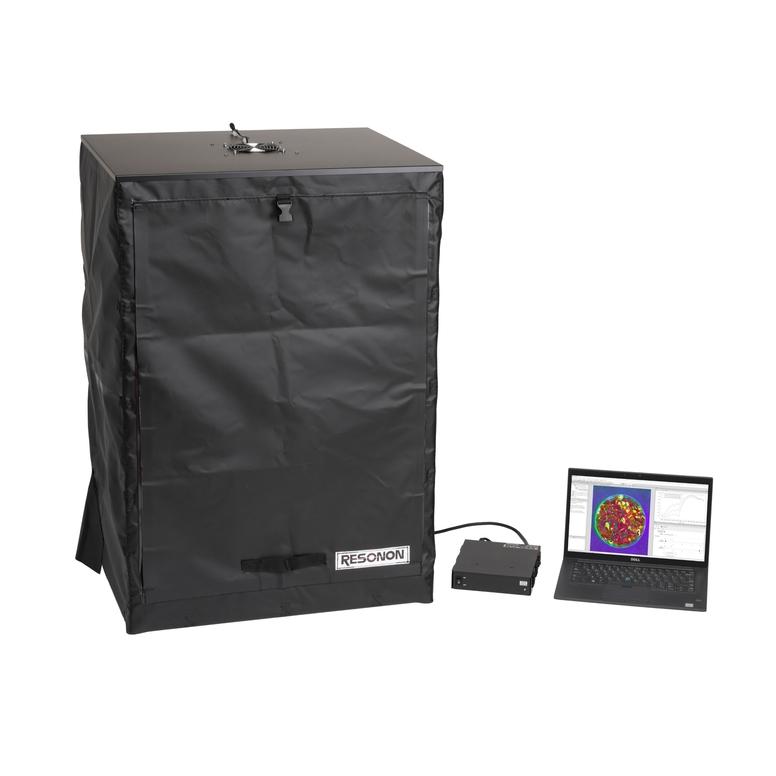

The Resonon "Black Box", an add-on accessory for the Benchtop System, eliminates unwanted ambient light without needing to turn off room lights.
Resonon's hyperspectral imaging systems are rugged and built to last, and we guarantee their performance. All our products include a two-year warranty. For details, click here for Warranty and Repairs.
Photos of Benchtop - Reflectance/Transmission
Specifications
Power requirements120 or 240 VAC
Stage Length (mm/in)305 / 12
Tower Height (mm/in)890 / 35
CertificationsCE, RoHS 3
