Pika SWIR1000 - 2500 nm
Short-Wave Infrared
1000 - 2500 nm
Short-Wave Infrared
The Pika SWIR hyperspectral imager is a high spatial and spectral resolution Short-Wave Infrared (1,000-2,500 nm) camera. It is compatible with Resonon's benchtop and outdoor systems. Integration with the airborne system is coming in the near future.
The SWIR wavelength range enables diverse applications, including mineral exploration, pharmaceutical inspection, soil characterization, and waste recycling.
Please contact us for product and pricing information.

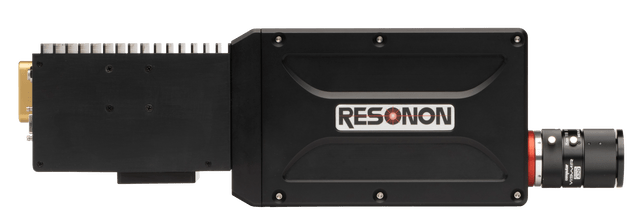

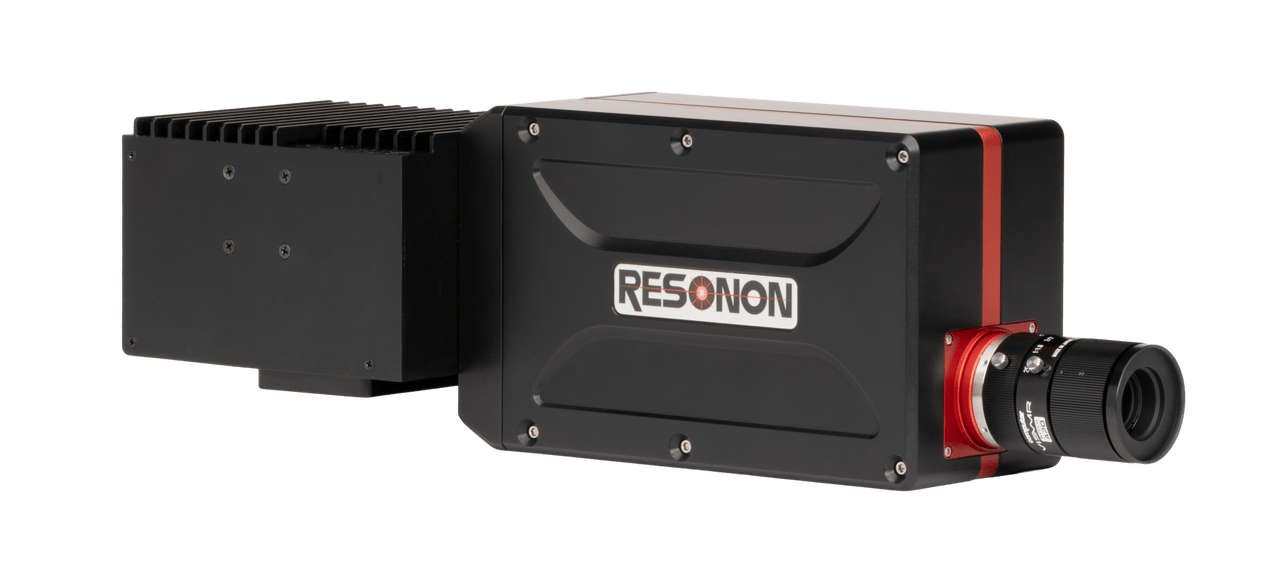

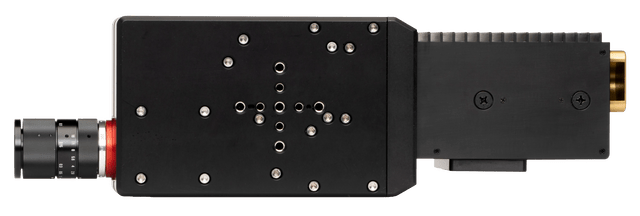

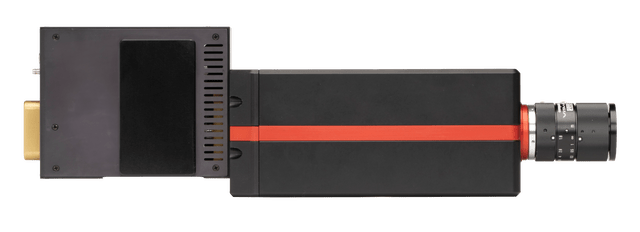

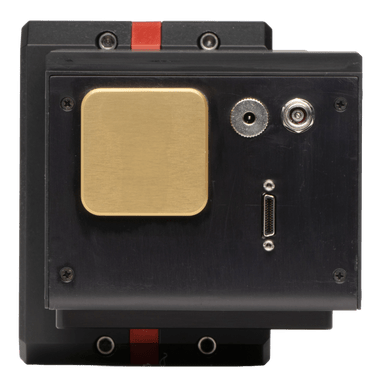

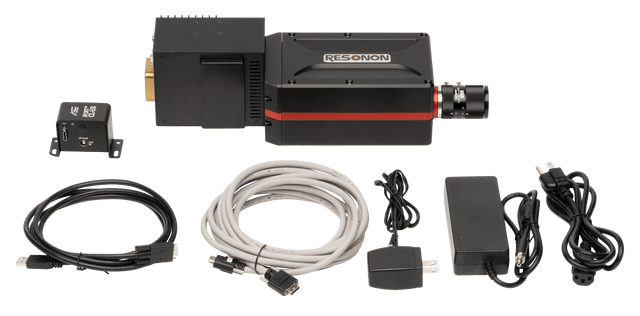

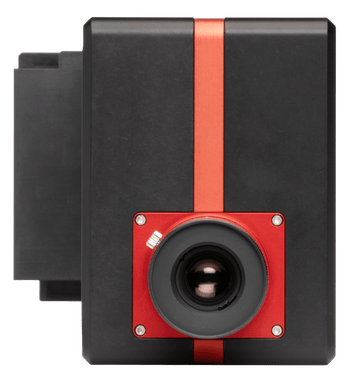

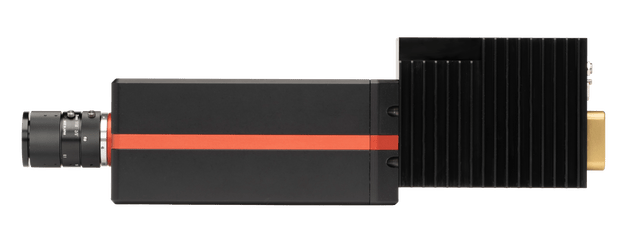

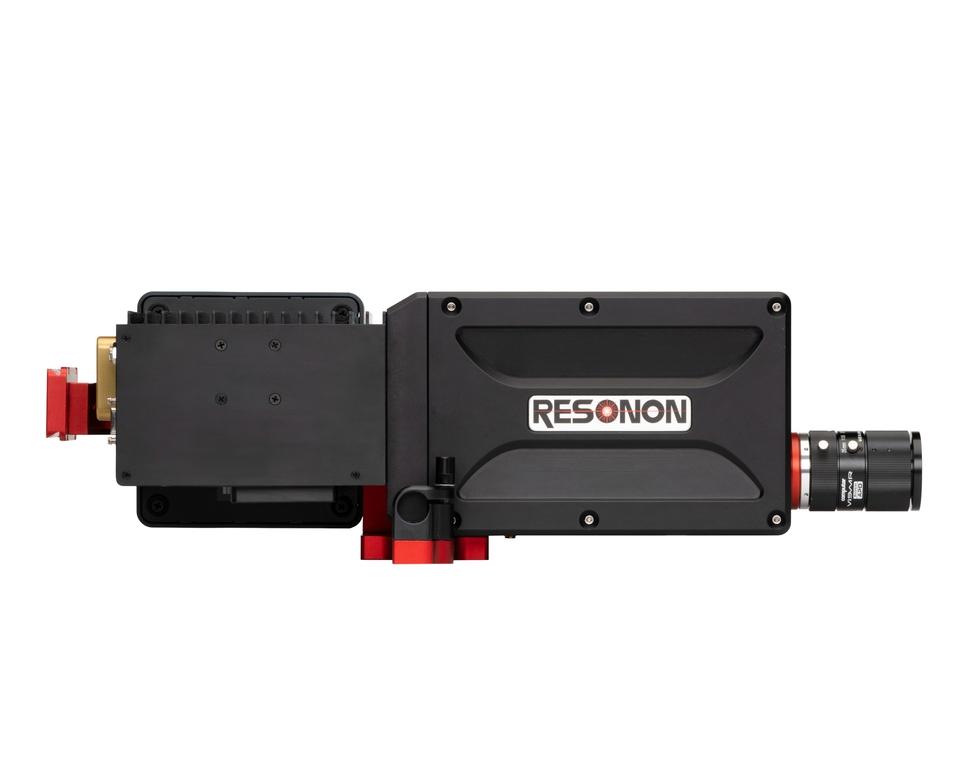

Photos of Pika SWIR
1000 - 2500 nm
Short-Wave Infrared
Specifications
Spectral Range (nm)
1000 - 2500
Spectral Channels245
Spectral Resolution - FWHM (nm)11.0
Spatial Pixels
640
Max Frame Rate (fps)120
f/#1.8
InterfaceUSB3.0 (via frame grabber)
Dimensions (mm)339 x 117 x 114
Weight, w/o lens (kg)3.98
CertificationsCE, RoHS 3
Hyperspectral Terminology
Terminology Definitions LINK
Objective Lenses for Pika SWIR
Focal Length (mm)FOV (deg)IFOV (mrad)
2521.71.20
1633.41.80
862.04.0
677.35.0
