Outdoor Hyperspectral Imaging Systems
Resonon's tripod-mounted rotational scanning hyperspectral imaging systems are designed for outdoor field use.
Our field systems are completely integrated turnkey solutions ready for immediate use. The system includes hyperspectral imaging camera, tripod with laptop tray, rotational scanning stage, power supply, and SpectrononPro control software. Systems can be fitted with any of Resonon's hyperspectral imaging cameras covering the 350 - 1700 nm spectral range.
Resonon provides easy-to-use hyperspectral imaging systems, for laboratory and research applications.
Contact us
Please contact us to discuss product and pricing information.
We want to hear from you.
Resonon Outdoor Hyperspectral Imaging System Data Sheet
Field system components

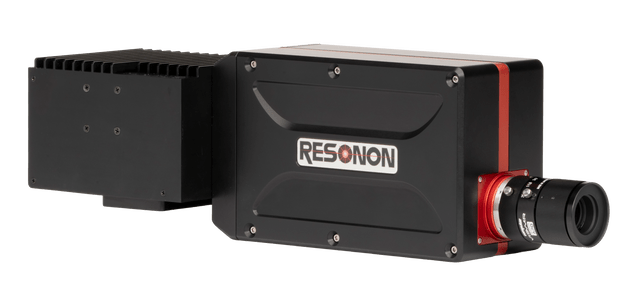

- Hyperspectral imaging camera
- Objective lens
- Rotational scanning stage
- Tripod with laptop tray
- Bright-screen ruggedized laptop computer
- SpectrononPro software
- Power supply
- Radiometric calibration
Options and specifications
Hyperspectral camera options | ||||
|---|---|---|---|---|
| Hyperspectral camera | Spectral range (nm) | Spectral resolution (nm) | Spatial resolution (pixels) | Max frame rate (fps) |
| Pika NUV | 350-800 | 2.3 | 1600 | 165 |
| Pika L | 400-1000 | 2.1 | 900 | 249 |
| Pika XC2 | 400-1000 | 1.3 | 1600 | 165 |
| Pika NIR-320 | 900-1700 | 4.9 | 320 | 520 |
| Pika NIR-640 | 900-1700 | 2.5 | 640 | 249 |
| A C++ API is available for customers who want to integrate Resonon hyperspectral cameras into their own software system. This API is provided to customers for free upon request. | ||||
Rotational stage parameters | ||
|---|---|---|
| Max travel angle | 360 deg | |
| Max rotational speed | 56.250 deg/s | |
| Min rotational speed | 0.281 deg/s | |
| Power requirements | 12 V, 2A | |
Standard objective lens optionsClick here for more information on objective lenses. | |||
|---|---|---|---|
| camera | focal length (mm) | FOV (deg) | IFOV (mrad) |
| Pika L | 70 | 4.3 | 0.21 |
|---|---|---|---|
| 50 | 6.0 | 0.30 | |
| 23 | 13.1 | 0.65 | |
| 17 | 17.6 | 0.88 | |
| 12 | 24.8 | 1.25 | |
| 8 | 36.5 | 1.87 | |
| 6 | 47.4 | 2.50 |
| Pika XC2 | 70 | 7.7 | 0.17 |
|---|---|---|---|
| 50 | 10.7 | 0.24 | |
| 23 | 23.1 | 0.52 | |
| 17 | 30.8 | 0.71 | |
| 12 | 42.7 | 1.00 | |
| 8 | 60.8 | 1.50 | |
| 6 | 76.0 | 2.00 |
| Pika NIR | 75 | 7.3 | 0.33 |
|---|---|---|---|
| 50 | 11.0 | 0.50 | |
| 25 | 21.7 | 1.00 | |
| 6.0 | 77.3 | 5.10 |
| Pika NUV | 17 | 30.8 | 1.47 |
|---|
Other objective lenses are available. Please contact us to discuss your particular requirements.
Custom configurations are available upon request.
Click here to contact us to discuss your specific requirements.
Resonon Outdoor Hyperspectral Imaging System Data Sheet
Resonon's hyperspectral cameras are line-scan imagers. 2-dimensional images are constructed by translating the sample relative to the camera. This is accomplished in Resonon's outdoor field system by placing the camera on a tripod and rotating the camera.
- Hyperspectral System Users Manual (PDF) - contains SpectrononPro manual
- Hyperspectral System Users Manual (HTML) - contains SpectrononPro manual
- Outdoor System Assembly Guide (PDF)
- C++ SDK Documentation
- Contact us for product and pricing information.
- For help using Resonon hyperspectral imaging systems, call (406) 586-3356 or email us at ProductSupport@resonon.com.
